Tera 60 Rear Axles

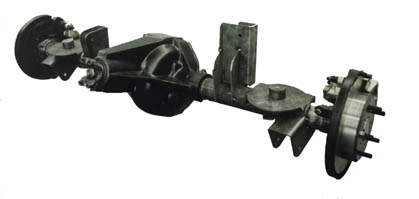

Foothill Tera 60 rear axles are the ultimate axles for offroad use. They feature high strength, high ground clearance and a high pinion. The housing is a high alloy casting with large webbing, a cast cover for additional strength, and a machined surface with drilled and tapped mounting holes for the custom suspension builder. The high clearance affords the same clearance as a Dana 44 axle, with no compromise in strength. The high pinion reduces driveshaft angles and is a benefit to short wheelbase or highly lifted rig. Configurations are available for any vehicle. Our rear axles feature:
- Spicer ring & pinion sets (ratio of your choice)
- Timken bearings
- Spicer small parts (seals, yoke, hardware)
- Dutchman 35 spline alloy axle shafts
- 5, 6 or 8 lug wheel pattern
- 11″ x 2″ drum brakes
- U bolt style yoke
- Differential of choice (open, limited slip, or locker)
Rear axles are built to your specifications. Upon placement of order, a build sheet will be completed that shows the width, pinion angle, spring location and lift, lug pattern, gear ratio choice, brake choice, and locker choice.
Options:
- Drum brakes up to 13″ diameter
- Disc brake kit
- Jeep TJ coil spring bracket kit
- Yoke for 1330 or 1350 series U joint
- Full float axle shafts (8 lug wheel pattern only)
Our axles include a 24 month/24,000 mile warranty on workmanship and warranties on all aftermarket products are honored.
